SATRA TM133 Shoe Outsole Flex Testing Machine AC 220V

Name: SATRA TM133 Shoe Outsole Flex Testing Machine AC 220V
Brand: GESTER
Price: 1 USD

Buy cheap SATRA TM133 Shoe Outsole Flex Testing Machine AC 220V product

Brand Name : GESTER

Model Number : GT-KB35

Certification : CE,ISO

Place of Origin : CHINA

MOQ : 1 set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets/month

Delivery Time : 10-30 days

Packaging Details : wooden packaging

Warranty : 1 year

Standards : SATRA TM133

Test object : footwear material

Calibration certificate : ISO 9001, UKAS, CE

Material of hot plates : Aluminum

weight : 170KG

Items : to determine the flex resistance of the specimen

Color : black

Price : factory price

Keyword : Woman Man Shoe outsole testing machine

Contact Now

Footwear Testing equipment Shoes Outsole Flex Test Instrument

APPLICATION

This machine is to determine the resistance of a component or material to crack initiation and growth due to repeated flexing.

PRINCIPLE

It tests the specimen by simulating a personal walking in a normal way so as to determine the resistance of the specimen to flex. Users can set the number of tests themselves, and it will stop automatically when the number of tests has been reached. More than one specimen can be tested once in order to enhance work efficiency.

KEY SPECIFICATION

Model	GT-KB35
Canvas belt size	Length :1930±50mm Width :140±5mm
Driven roller	Diameter: 225 ± 5 mm
Driven roller	Width: 170 ± 20 mm
Free roller 1 for typical sole units test	Centre Diameter : 90.0 ± 0.5 mm
	Ends Diameter : 87 ± 1 mm
	Width: 170 ± 20 mm
Free roller 2 for very flexible sole units test	Centre Diameter : 60.0 ± 0.5 mm
	Ends Diameter : 57 ± 1 mm
	Width: 170 ± 20 mm
Free roller 3 for very rigid sole units	Centre Diameter : 120.0 ± 0.5 mm
	Ends Diameter : 117 ± 1 mm
	Width: 170 ± 20 mm
Belt rotate speed	90 ± 8 CPM
Sampling	MAX.6 pcs
Counter	LCD 0~999,999
Power supply	AC 220V 50/60HZ 3A
Dimensions(W×D×H)	131 cm x 82cm x 69cm
Weight(Approx)	170kg
Standards	SATRA TM 133

STANDARD ACCESSORIES

Standard accessories	1pc	Spanner
	1pc	Canvas belt
	3pcs	Free roller
	1pc	Drive roller
	1pc	Power line
Option accessories	Optional	Canvas belt (consumptive material)

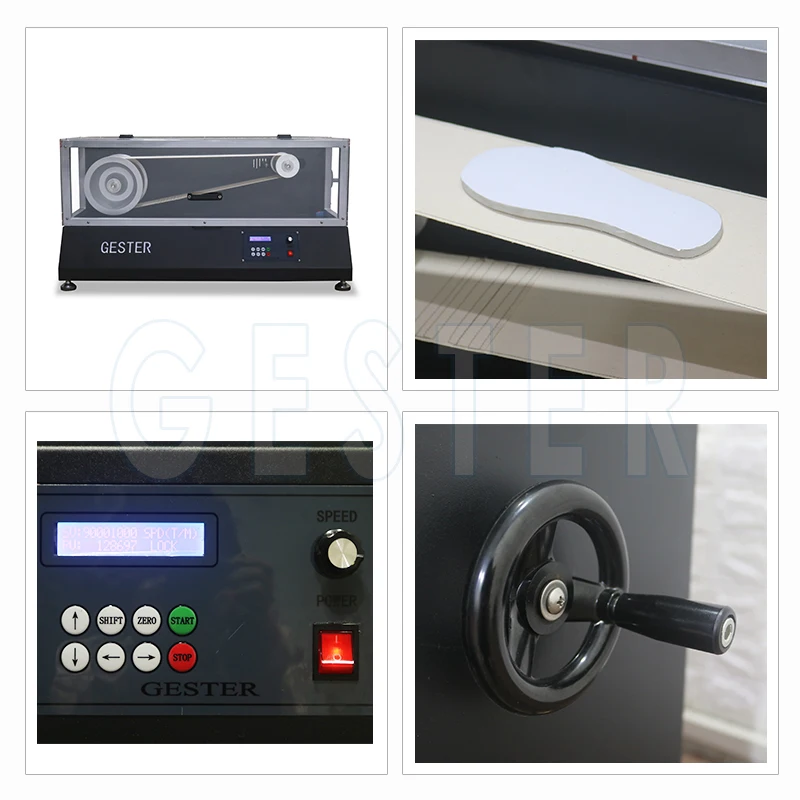

PRODUCT IMAGE

SATRA TM133 Shoe Outsole Flex Testing Machine AC 220V
